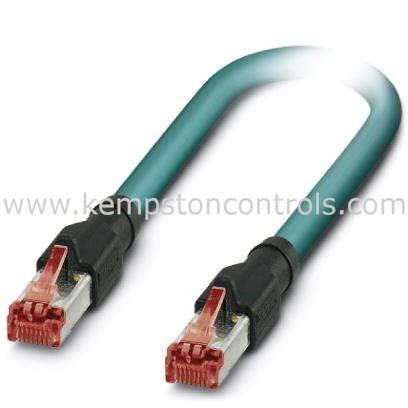

Phoenix - 1403927 Ethernet cable, shielded, 4 pair, 26 AWG 7 wire, RJ45 to RJ45 connector, 1M, IP20

1403927 / NBC-R4AC/1,0-94Z/R4AC

Images are for illustrative purposes only

Manufacturer: Phoenix
PHOENIX ETHERNET CABLE, SHIELDED, 4 PAIR, 26 AWG 7 WIRE, RJ45 TO RJ45 CONNECTOR, 1M, IP20

0 in stock

One Free UK delivery per day for all online orders over £20.00
(Exc Vat)
Limited time only
Why not check out our related items!
  • Information
  • Specification
  • Related
  • Delivery
  • International
  • Alternatives

NBC-R4AC/1,0-94Z/R4AC- RJ45 Halogen Free Ethernet Network Cable, 1 metre

A high quality pre-assembled 1 metre RJ45 to RJ45 ethernet CAT5 network cable assembly, consisting of 4 twisted pairs within a tinned copper braided shield, perfect for networking functions that rely upon a high-speed signal of up to 1 Gbps with dependable quality and reliability.

This high-quality IP20 rated Phoenix Contact ethernet network cable assembly consists of dual RJ45 connectors with a hardwearing grey PA (polymide) housing with gold over nickel-plated bronze connector contacts, that ensure an extended service life whatever your networking application.

The cable outer sheath is a durable water blue (RAL 5021) coloured PUR (polyurethane) which is flame resistant to IEC 60332-1-2 and halogen free according to IEC 60754-1.


NBC-R4AC/1,0-94Z/R4AC- RJ45 Ethernet Network Cable Features:

  • 1 Metre in length
  • Wire colours in 4 twisted pairs: White/blue - blue, White/orange - orange, white/green – green, white/brown – brown
  • Cat 5 rated Ethernet cable assembly (IEC 11801) 1 Gbps
  • Mating cycles ≥ 750
  • Ambient temperatures: -20 to +70 °C (RJ45 connectors) -20 to 80 °C (cable)
  • Bend radius of cable fixed and movable – 51.2mm
  • Flammability rating according to UL94 – V2 (RJ45 connectors)
  • Cable flame resistance IEC 60332-1-2, halogen free according to IEC 60754-1

Distributed by Kempston Controls

Kempston Controls a UK specialist technical distributor of fuses, sensors and control equipment. If you would like to discuss any of the parts which you see on our online store, please contact our dedicated UK sales centre on +44 (01933) 411411.

More about Kempstons

1403927 Specification

Alternative Part Number: NBC-R4AC/1,0-94Z/R4AC

Manufacturer: Phoenix

Pricing Unit: Each

Weight: 0.074 kg (each)

Tariff code: 85444210

Generic code: PHOAB

GTIN/UPC/EAN: 4046356673945

PDF Product Datasheet for 1403927 (77 kb)
